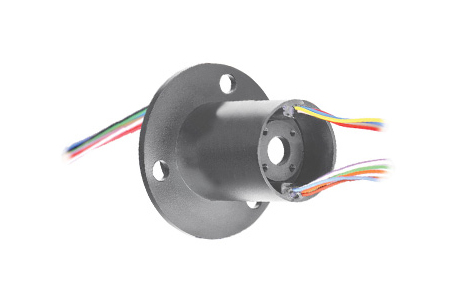

New Type Through Hole Capsule Slip Ring Launched into Market

Technical Questions by Customers

Circuits 1-7 circuits
Work Speed 0-300RPM
Work Temperature -20℃-+60℃
Work Humidity 60%RH or higher
Voltage Rating 240VAC/DC
Current Rating 2A per circuit
Through Hole Size 2-10mm
Dielectric Strength 500VAC@50Hz between each circuit
Electrical Noise 1mΩ Min
Contact Materials Gold to gold
Lead Wire Size AWG26 Teflon® UL
Lead Wire Length Standard 250mm
Housing Materials Engineering Plastic
Torque ≤0.88 gm ( for reference)
Protection IP54 or higher

Barlin Times will be highly welcome your contact if you would like to get more details or special specification. Looking forward to your kind cooperation in the near future. Thanks.
