For various applications, the end user will have different special technical requirements about the design, size, specification and functions of slip ring. Therefore, they should need to find a reliable and excellent slip ring supplier to support them and meet their slipring demand exactly.
Barlin Times, the biggest slip ring manufacturer in China which enjoyed around 10 years experience in the slip ring field, we have developed and researched many different type design slip rings for domestic and foreign companies in the application of military, wind turbine, medical, robotics, security system, engineering machinery equipment, marine, amusement equipment,etc. Barlin Times is still not satisfied with present status, they are continuously designing more latest slip ring type with better performance to meet each industry requirement. Recently, Barlin Times has designed and produced two special type slip rings for electrical part combined with fiber optical rotary joint & electrical part combine with high frequency rotary joint, these two kind of slip rings are a very special design which has strict limited dimension and different functions that used in military application. The detail specifications and picture check as following.
ELECTRICAL PART COMBINED WITH FIBER ROTARY JOINT:
Product Type | Electrical part combined with fiber rotary joint |
Electrical Part
|
|
Circuits/Current |
8 circuits @ 5A, 5 circuits @ RS422 signal, 2 circuits @ coaxial signal, 8 circuits @ Ethernet signal, 4 circuits @ data transmission |
Voltage Rating | 0-380VDC/AC |
Work Temperature | -40℃~+85℃ |
Work Humidity | 60%RH or higher |
Work Speed | Below 50rpm |
Insulation Resistance | 1000MΩ@500VDC |
Electrical Noise | Min 8mΩ |
Lead Wire Size |
AWG22 teflon wire, 8 core shield wire, 5 core RS422 wire, 75Ωcoaxial cable, CAT5E cable |
Lead Wire Length | 300mm |
IP Degree | IP54 or higher |
Contact Materials | Gold to gold |
Housing Materials | Aluminum alloy |
Fiber Optical Part
|
|
Fiber Channel | 1 |
Work Speed | 0-2000rpm |
Work Temperature | -40℃~+85℃ |
Wavelength Range | 650-1650nm |
Fiber Type | Single mode |
Insertion Loss | <2dB |
Return Loss | >40dB |
Pulling Strength | 10N |
Housing Materials | Stainless steel |
Connector Type | LC(APC) |
Vibration | MIL-STD-167-1A |
Mechanical Shock | MIL-STD-167-810G |
IP Protection | IP68 |

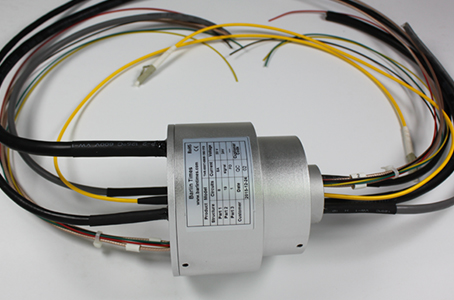

Product Picture:
ELECTRICAL PART COMBINED WITH COAXIAL ROTARY JOINT:
Product Type | Electrical part combined with coaxial rotary joint |
Electrical Part
|
|
Circuits/Current |
8 circuits @ 5A, 5 circuits @ RS422 signal, 3 circuits @ coaxial signal, 8 circuits @ Ethernet signal, 4 circuits @ data transmission |
Voltage Rating | 0-380VDC/AC |
Work Temperature | -40℃~+85℃ |
Work Humidity | 60%RH or higher |
Work Speed | Below 50rpm |
Insulation Resistance | 1000MΩ@500VDC |
Electrical Noise | Min 8mΩ |
Lead Wire Size |
AWG22 teflon wire, 8 core shield wire, 5 core RS422 wire, 75Ωcoaxial cable, CAT5E cable |
Lead Wire Length | 300mm |
IP Degree | IP54 or higher |
Contact Materials | Gold to gold |
Housing Materials | Aluminum alloy |
Fiber Optical Part
|
|
Coaxial Channel | 1 |
Work Speed | 0-500rpm |
Work Temperature | -40℃~+85℃ |
Work Humidity | 95%RH |
Frequency Range | 0-18GHz |
Frequency Impedance | 75Ω |
Insertion Loss | 0.3dB |
Insertion Loss WOW | 0.05dB |
VSWR | 1.5dB |
VSWR WOW | 0.05dB |
Peak Power | 5KW max |
Starting Torque | 0.5N max |
Connector Type | BNC |
Housing Materials | Metal housing |
Contact Materials | Precious metal |
Vibration | MIL-STD-167-1A |
Mechanical Shock | MIL-STD-167-810G |
IP Protection | IP54 |

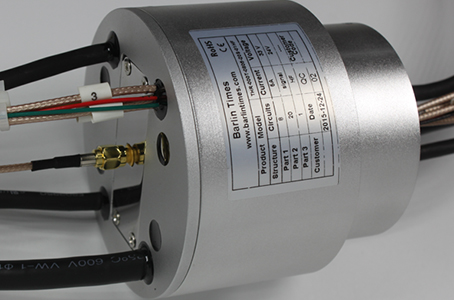

Product Picture:
It is easy to find a slip ring supplier at home and abroad, but it is really difficult to find a reliable and profitable slip ring manufacturer in China, particularly you have special and strict demand on the slip ring design and structure. Barlin Times always try best to consider everything from end user’s condition and expect to have longer and smooth cooperation together. If you have interest in slip ring product or any question, Barlin Times welcome your coming and contacting.
